Choose the Winch for the Vehicle and the Recovery

Start with the vehicle’s fully loaded touring weight, including passengers, fuel, accessories, cargo and any permanent fit-out. Then consider the resistance a recovery may create. Deep mud, sand, a steep slope, suction and a disabled wheel can demand far more force than rolling the same vehicle on firm, level ground.

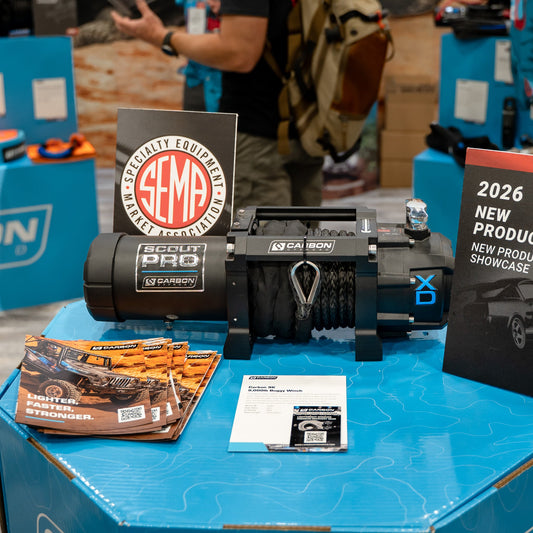

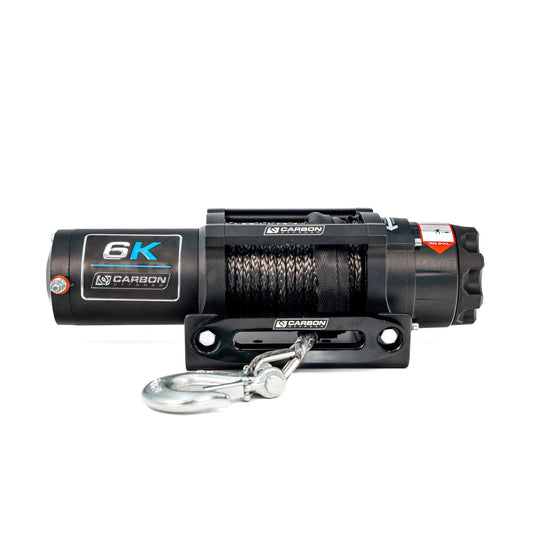

The Carbon range separates lighter ATV, SXS, trailer and small-vehicle winches from mainstream 4WD and heavy-vehicle models. The 3K and 6K families cover lighter applications; the Carbon 12K V3X is the central touring-4WD option; Scout Pro short-drum models suit installations where package size and line speed matter; and the Scout Pro 20K range is designed for large, heavy vehicles. The winch rating is only one part of the decision: the mount, recovery points, electrical system and every rigging component also need to suit the task.

Understand Rated Line Pull

A winch’s headline rating describes maximum single-line pull under specified conditions. Pulling capacity is greatest on the first rope layer closest to the drum and reduces as additional layers build up. Real recovery load also changes with terrain, slope, wheel condition and how deeply the vehicle is stuck.

A recovery ring or snatch block can redirect the rope or create an appropriate multi-line pull, but the anchor point and rigging can carry substantial forces. Plan the rope path before loading the system and use only components with suitable ratings and compatible connection methods.

Confirm Physical Fitment Before Installation

Measure the available space inside the bull bar, winch cradle or trailer mount and compare it with the exact winch dimensions, mounting bolt pattern, drum length and control-box arrangement. A winch may have a familiar capacity yet still be too long, tall or wide for a particular bar. Short-drum winches can solve some space constraints, but they use different rope lengths and may require different mounting or control components.

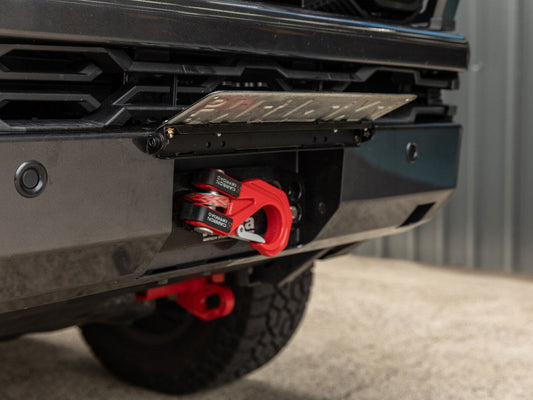

The mounting structure must be designed for winching loads and compatible with the vehicle. A cosmetic bar, tie-down point or unverified cradle is not a recovery-rated mount. Keep the number plate, fairlead, hook and rope path clear and make sure the clutch can be reached safely.

Match 12V and 24V Equipment Correctly

Most passenger 4WD installations use a 12V winch, while selected heavy-vehicle and specialist systems use 24V. The winch motor, solenoid or control box, remote system and vehicle supply must use the same voltage. A 24V winch is not a direct upgrade for a 12V vehicle, and 12V control gear must not be mixed into a 24V system.

Electric winches draw very high current under load. Use the specified cable size and routing, secure and protect the cables from heat and abrasion, fit the supplied or required isolation arrangement, and maintain sound battery and charging-system connections. Poor voltage supply increases heat and reduces performance.

Winch-Only, Accessory Kits and Complete Bundles

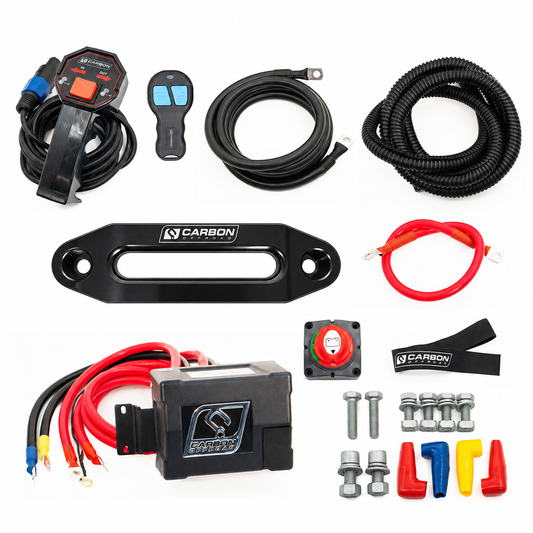

Carbon winch-only products suit customers who already have compatible control equipment, wiring and front-end hardware. Complete-kit and bundled listings add the components named in that product, which may include a control and wiring kit, synthetic rope, fairlead, isolation hardware, remotes or a MegaPro hook.

Read the contents list as a checklist. The correct bundle is the one that supplies every required component once, matches the winch model and voltage, and fits the planned installation. A 12V accessory kit is not interchangeable with a 24V kit, and standard-drum and short-drum components can differ.

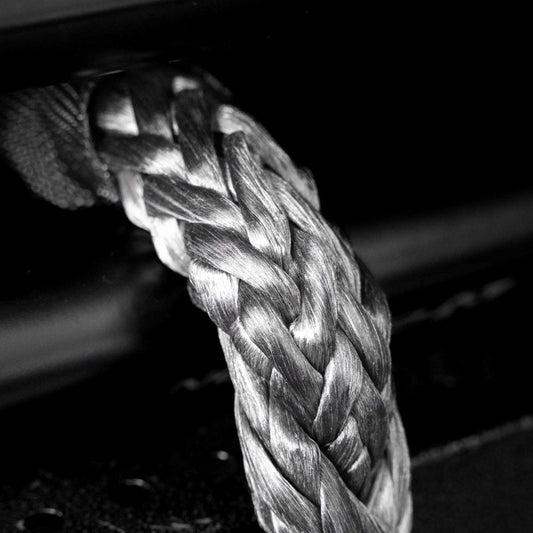

Synthetic Winch Rope, Fairleads and Hooks

Synthetic rope reduces weight, is easier to handle than steel cable and does not produce sharp wire splinters. It should run through a smooth fairlead designed for synthetic rope. Keep the rope away from sharp edges, damaged fairleads, hot exhaust parts and abrasive surfaces, and use an abrasion sleeve where the rope contacts a suitable anchor or rough surface.

Spool the rope evenly under light tension after use. Crossed or loose wraps can bury under load and make the next deployment difficult. Wash out sand, mud and salt with clean water, dry the rope away from direct heat and inspect the full working length, the drum connection, protective sleeve, splice and terminal hardware.

Kinetic Ropes, Static Ropes and Extension Gear

A kinetic recovery rope stretches to store and release energy during a controlled vehicle-to-vehicle recovery. An all-purpose or low-stretch recovery rope transfers force with far less elongation, while a winch extension rope or strap extends reach for winching and rigging. These products are not interchangeable.

Kinetic recovery can generate severe forces and should be performed only by people who understand the equipment, vehicle recovery points, communication and exclusion zones. Use a deliberate plan, the least force needed and compatible rated equipment throughout the system.

Soft Shackles and Metal Shackles

Soft shackles are light, do not require a pin and work well with smooth, rounded recovery points and recovery rings. Seat the knot correctly, keep it away from the bearing surface and protect the fibres from burrs, sharp edges, heat and dragging. A soft shackle should not be placed through a sharp stamped opening simply because it physically fits.

Bow shackles and other metal connectors need compatible pin and body dimensions, suitable ratings and enough articulation to align with the load. Never side-load a shackle or substitute unrated hardware.

Recovery Rings, Snatch Blocks and Redirects

Recovery rings are compact and normally pair with a compatible soft shackle and synthetic rope. A conventional snatch block uses a rotating sheave and typically connects with suitable rated hardware. Both can change pull direction, and a correctly planned double-line arrangement can reduce the load seen by the winch while using more rope and lowering line speed.

Keep the rope seated in the intended groove or sheave, avoid crossed lines and account for the forces applied to the anchor and connection points. Multi-line rigging is not automatically safer simply because the winch works less hard.

Use Rated Recovery Points—Never a Tow Ball

Connect recovery equipment only to suitable rated recovery points or recovery hardware designed for the intended method. Factory transport tie-downs, suspension components and tow balls are not substitutes. A tow ball can break under recovery load and become a high-speed projectile.

A receiver-mounted recovery hitch can provide an appropriate rear connection only when the receiver, hitch and connecting equipment are all suitable for recovery and used as designed. Remove unnecessary people from the area and keep everyone outside the rope, strap and vehicle travel paths.

Dampers, Communication and Exclusion Zones

Place a suitable damper on a tensioned winch line where required by the equipment instructions and recovery plan. A damper is an additional control, not permission for anyone to stand near the line. Agree on one person directing the recovery, use clear signals, stop if communication is lost and never step over or straddle a loaded rope or strap.

Inspect, Clean and Replace Recovery Gear

Inspect every component before and after use. Replace synthetic rope or soft shackles with cuts, melting, glazing, severe abrasion, damaged splices or chemical contamination. Replace straps with torn stitching, cuts, burns, heavy fraying or unreadable identification labels. Remove bent, cracked, badly corroded or difficult-to-operate metal hardware from service.

Clean off mud, sand and salt, allow textile equipment to dry fully away from direct heat, and store it out of sunlight and away from chemicals. Keep ropes and straps separated from sharp tools so damage is easy to spot before the next trip.

Build a Complete Carbon Offroad Recovery Setup

A practical setup starts with suitable vehicle recovery points and the lowest-force recovery method likely to work. Depending on the trip and vehicle, that can include tyre-pressure equipment, traction aids, a shovel, a correctly installed winch, tree protector, extension gear, compatible shackles, a ring or block, damper, gloves and a recovery bag. Carrying more components is useful only when the people involved know what each item does and how it connects.

Browse the wider Recovery Gear range for recovery tracks and other equipment, compare Air Compressors & Tyre Deflators, or return to 4WD Gear & Off-Road Accessories. Installation hardware and related fit-out products are also available in 4WD DIY Parts.

Common Carbon Offroad Selection Mistakes to Avoid

• Choosing a winch from the vehicle’s empty weight instead of its loaded touring weight.
• Assuming the headline line-pull rating is available on every drum layer.
• Buying a winch before measuring the bull bar or cradle and confirming the mounting pattern.
• Mixing 12V and 24V winches, control boxes or electrical components.
• Ordering a winch-only product without the compatible control, wiring or front-end hardware needed to install it.
• Using a kinetic rope as a winch extension or using low-stretch extension gear for a kinetic recovery.
• Running synthetic rope across sharp edges or through a damaged or unsuitable fairlead.
• Connecting recovery gear to a tow ball, transport tie-down or other unrated point.
• Selecting components by a headline breaking figure without confirming their intended use and compatibility.
• Repacking muddy or wet textile recovery gear without cleaning and drying it.

Product note: Winch rating, voltage, dimensions, mounting pattern, rope size and length, line speed, current draw, included hardware and compatibility vary by model. The specifications and contents shown on each product page identify the exact configuration being sold.

Safety note: Vehicle recovery can create extreme stored energy. Use suitable rated recovery points and compatible equipment, keep people clear of the recovery zone, follow the equipment and vehicle instructions, and do not attempt kinetic or complex winch recovery without the necessary knowledge and experience.
