Giantz 60A MPPT Solar Charge Controller 12–48V
Squeeze more power from your solar panels and protect your battery bank. The Giantz 60A MPPT controller handles 12V to 48V systems with up to 99% tracking efficiency.
No reviews
Regular price
$178.95
Regular price
$202.81
Sale price
$178.95
Unit price
/
per
Shipping calculated at checkout.
- Secure Checkout
- 14-Day Returns
- Fast Aussie Dispatch
Couldn't load pickup availability
Details
Details
If your solar system is underperforming, the charge controller is often the culprit. A quality MPPT controller like this Giantz 60A unit can extract significantly more power from your panels compared to older PWM technology — up to 99% tracking efficiency means less wasted solar input and faster, more consistent battery charging throughout the day.
The auto voltage detection across 12V, 24V, 36V and 48V systems takes the guesswork out of installation and makes it compatible with a wide range of setups — from a single-battery camp trailer to a larger caravan or off-grid cabin system. Multi-stage charging is built in to protect battery health over time, and the controller supports GEL, sealed, flooded, user-defined and lithium battery types, so it integrates with most existing battery banks.

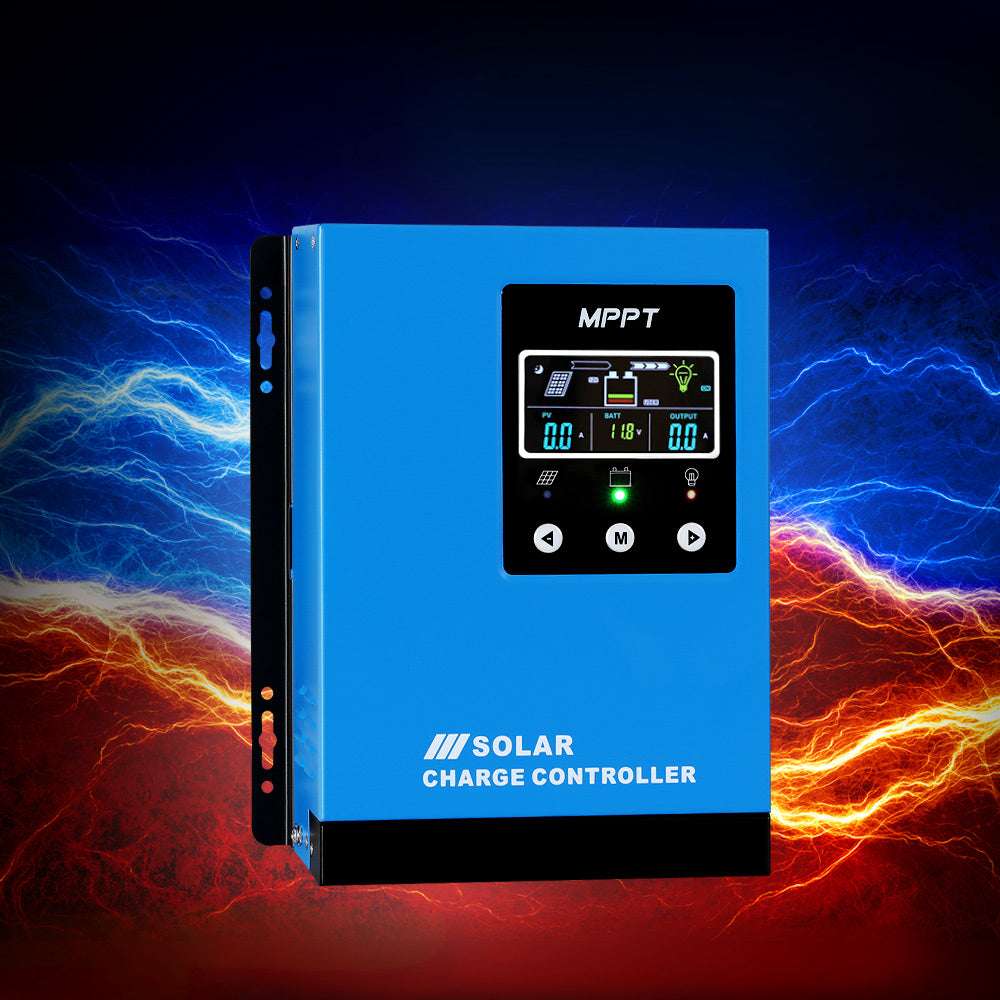

An iron case heat sink and active cooling fan handle thermal management during extended or high-load charging sessions, while the backlit LCD keeps system data visible without needing to pull out a phone or multimeter. RS485 and RJ45 communication ports allow for device monitoring and integration with compatible systems.
Protection is built in across overcharge, reverse polarity, overload and overheating scenarios. Check compatibility with your panel array and battery configuration before purchase, and verify cabling meets the AWG terminal requirements for your setup.
The auto voltage detection across 12V, 24V, 36V and 48V systems takes the guesswork out of installation and makes it compatible with a wide range of setups — from a single-battery camp trailer to a larger caravan or off-grid cabin system. Multi-stage charging is built in to protect battery health over time, and the controller supports GEL, sealed, flooded, user-defined and lithium battery types, so it integrates with most existing battery banks.
An iron case heat sink and active cooling fan handle thermal management during extended or high-load charging sessions, while the backlit LCD keeps system data visible without needing to pull out a phone or multimeter. RS485 and RJ45 communication ports allow for device monitoring and integration with compatible systems.
Protection is built in across overcharge, reverse polarity, overload and overheating scenarios. Check compatibility with your panel array and battery configuration before purchase, and verify cabling meets the AWG terminal requirements for your setup.
Specifications
Specifications
Rated charge current: 60A
System voltage: 12V / 24V / 36V / 48V (auto detect)
Max PV input power: 12V/780W, 24V/1560W, 36V/2340W, 48V/3120W
Max PV input voltage: 138V (at 25°C)
Terminals: Up to 3 AWG
Communication: RS485, RJ45
Battery compatibility: GEL, SLD, FLD, USR, Li
Operating temperature: -20°C to +55°C
Storage temperature: -20°C to +80°C
Humidity: 10%–90% (no condensation)

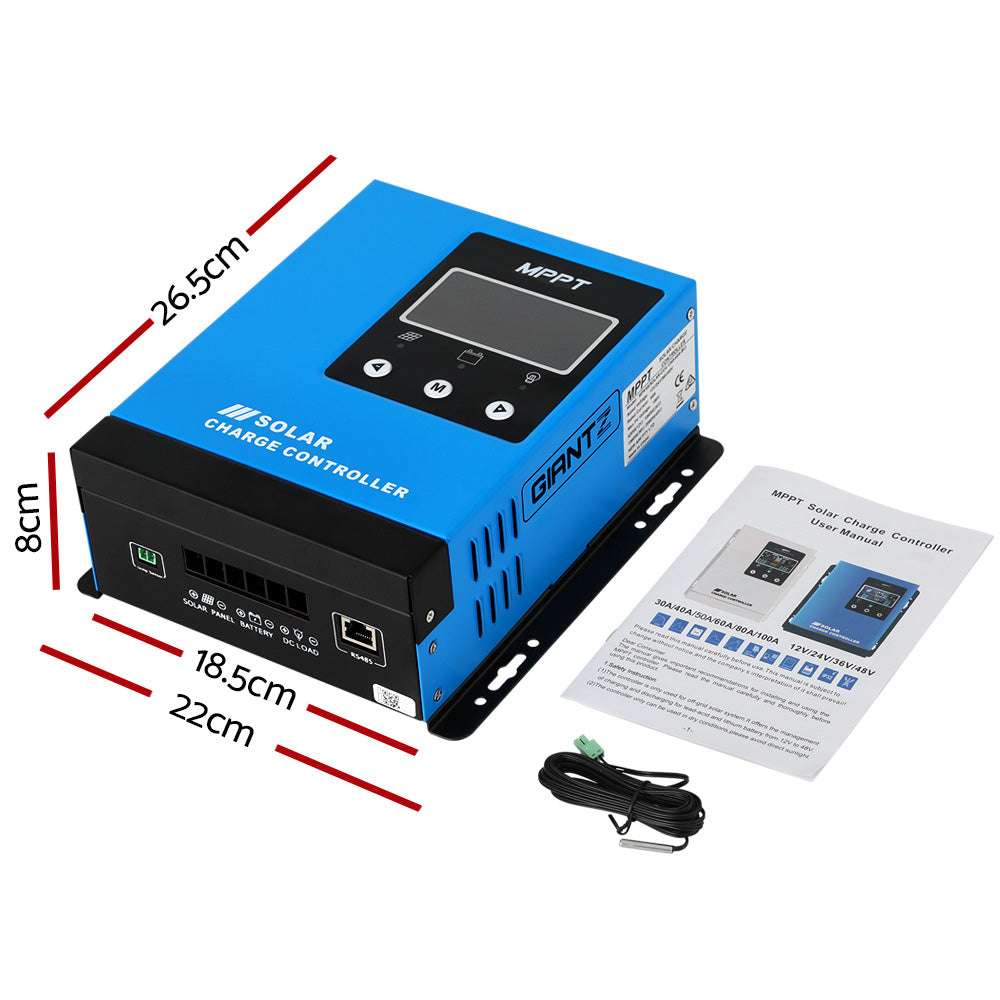

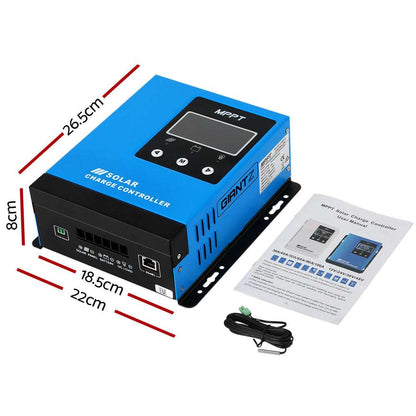

Dimensions: 22cm x 8cm x 26.5cm (L x W x H)
Weight: 3.05kg
System voltage: 12V / 24V / 36V / 48V (auto detect)
Max PV input power: 12V/780W, 24V/1560W, 36V/2340W, 48V/3120W
Max PV input voltage: 138V (at 25°C)
Terminals: Up to 3 AWG
Communication: RS485, RJ45
Battery compatibility: GEL, SLD, FLD, USR, Li
Operating temperature: -20°C to +55°C
Storage temperature: -20°C to +80°C
Humidity: 10%–90% (no condensation)
Dimensions: 22cm x 8cm x 26.5cm (L x W x H)
Weight: 3.05kg
What’s Included
What’s Included
1 x Giantz 60A MPPT solar charge controller
1 x Temperature sensor
1 x Manual
1 x Temperature sensor
1 x Manual
★★★★★
