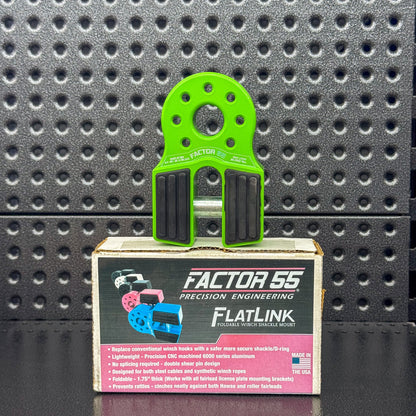

Factor 55 Flatlink Winch Shackle Mount - Green
Closed System Winching
The Factor 55 Flatlink Winch Shackle Mount - Green is the original folding winch shackle bracket designed to replace standard winch hooks for a safer recovery setup.
Upgrade your rig with the original folding winch shackle bracket from Factor 55. Designed to replace standard winch hooks, the Flatlink provides a safer, "Closed System Winching" setup, ensuring your recovery rigging is comprised entirely of secure, closed-link hardware.
Currently unavailable
Couldn't load pickup availability
Special offer
Use code to save 5% on this product.
Use at checkout. Valid on selected products only.
Key Benefits
- Low Profile Design: Folds flat (less than 44.5mm (1.75") thick) against the fairlead to maximize your approach angle and prevent snags on the trail.
- Fairlead Protection: Integrated EPDM rubber guards prevent rattling and protect your alloy fairlead from damage during line stowage.
- Universal Compatibility: Works with both steel and synthetic winch lines up to 9.5mm (3/8") diameter without requiring any splicing.
- Extreme Strength: Precision machined from 6000 series aluminum with a titanium shear pin. Rated for a max load of 7257.5kg (16000lbs) with an ultimate failure point over 18143.7kg (40000lbs).
Contents
1 x Factor 55 Flatlink Winch Shackle Mount - Green
Specifications
| Feature | Specification Metric (Imperial) |
|---|---|
| Material | 6000 Series Aluminum & Grade V Titanium pin |
| Weight | 0.65kg (1.4lbs) |
| Safety | Double-shear pin and internal snap ring for an ultra-secure connection |
| Origin | Engineered, Tested, and Made in the USA |
