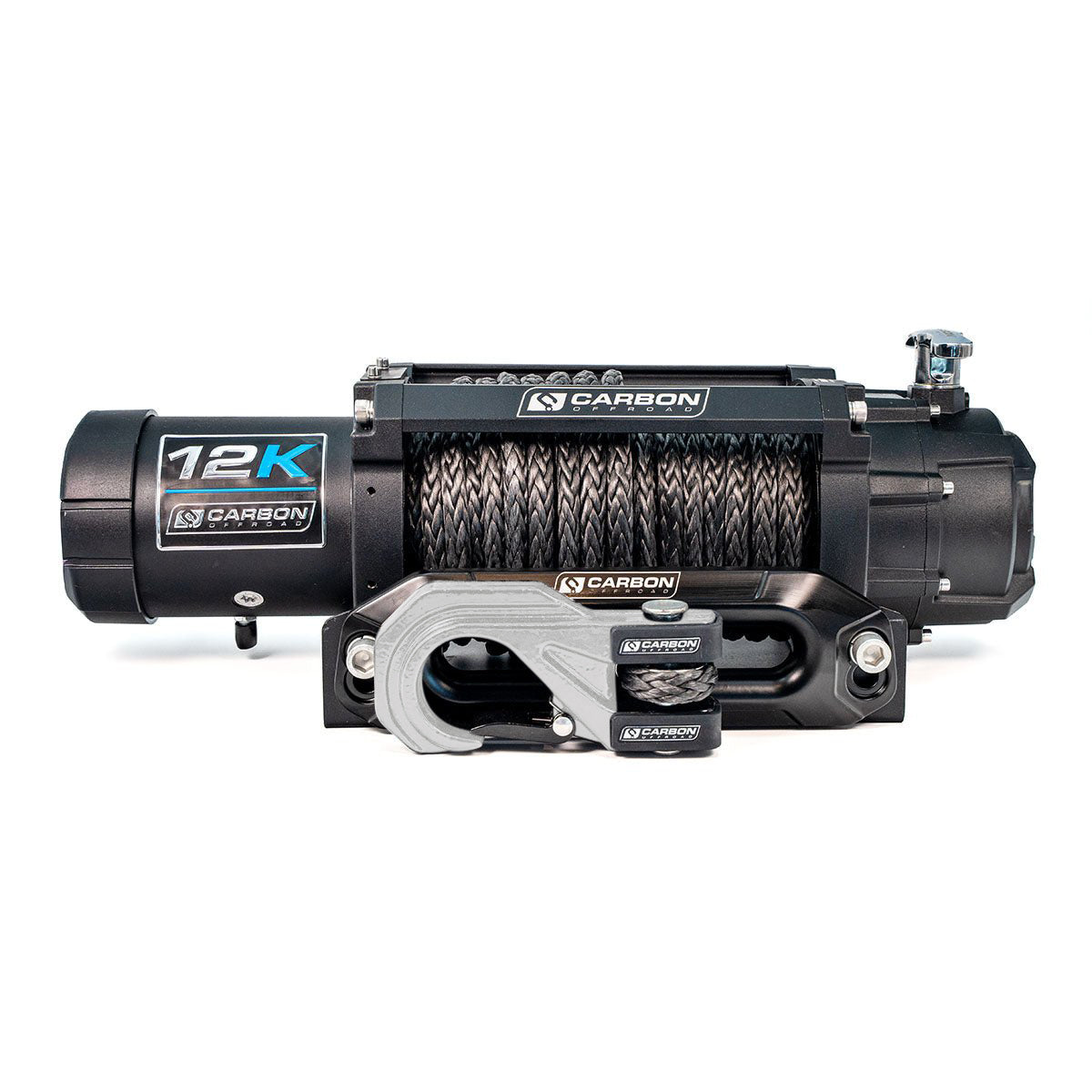

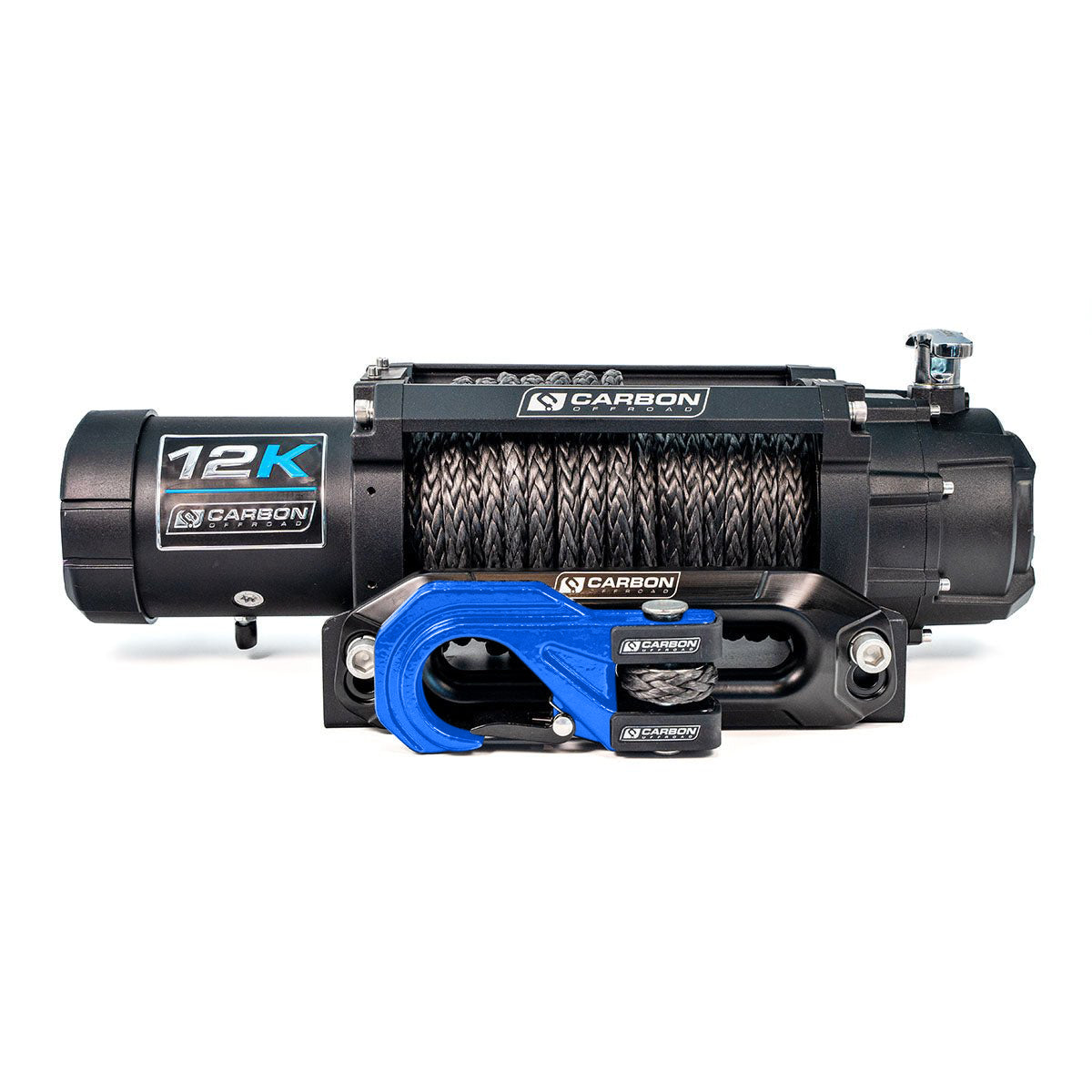

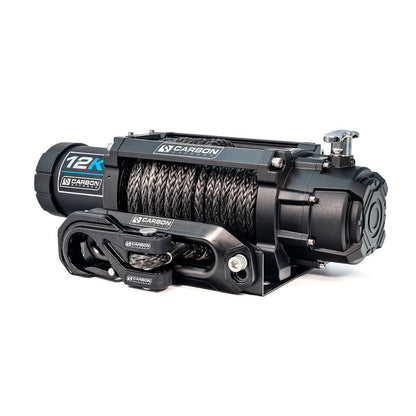

Carbon 12K - 12000lb Winch V3X with MegaPro Hook
Serious 12,000lb recovery power in a lightweight, adventure-ready winch. The Carbon 12K V3X is engineered in Australia for demanding off-road use, combining a 6HP series-wound motor, IP68 ingress protection and a durable three-stage planetary gearbox.
Supplied as a complete recovery kit with synthetic rope, fairlead, MegaPro hook, wired and wireless remotes, isolator switch and mounting hardware.
Calculating estimated deliveryā¦
Couldn't load pickup availability
Special offer
Use code to save 5% on this product.
Use at checkout. Valid on selected products only.
Overview
Engineered in Australia and refined through real-world use, the Carbon 12K V3X is built to deliver consistent pulling power through mud, sand and steep terrain. A breathable membrane-style motor breather accommodates heat expansion and contraction, while the rotating ring-gear clutch allows straightforward manual free-spooling when setting up a recovery.
Both wired and wireless remote controls are included, giving you flexibility to operate the winch from a safer position or from the driver's seat when conditions allow. The 12K V3X is also compatible with the Carbon Offroad Air Freespool Clutch Upgrade.
Key Features
- Unmatched pulling power: 12,000lb (5,450kg) single-line pull.
- IP68 ingress protection: Protection against dust, dirt and freshwater submersion up to 1.5m for 30 minutes when not operating.
- Durable geartrain: Three-stage planetary gearing with a 218:1 ratio.
- Complete recovery setup: Synthetic rope, CNC anodised alloy fairlead, MegaPro hook, wired and wireless remotes, isolator switch and mounting hardware.
- Upgrade compatible: Designed to work with the Carbon Offroad Air Freespool Clutch Upgrade.
What's Included
- 1 x Carbon 12K Winch V3X
- 1 x MegaPro Hook
- 1 x Synthetic Rope ā 24m x 10mm
- 1 x CNC Billet Alloy Black Anodised Fairlead
- 1 x Wired Remote Control ā 3.7m lead
- 1 x Wireless Remote Control
- 1 x Isolator Switch and Cabling
- 1 x Mounting Hardware Set
Warranty & Support
- Lifetime geartrain warranty
- 5-year electrical warranty
- 5-year water ingress warranty
Technical Specifications
| Feature | Specification |
|---|---|
| Part Number | CW-12KV3X |
| Rated Line Pull | 12,000lb (5,450kg) single-line |
| Motor | 12V DC 6HP series wound |
| Geartrain | 3-stage planetary |
| Gear Ratio | 218:1 |

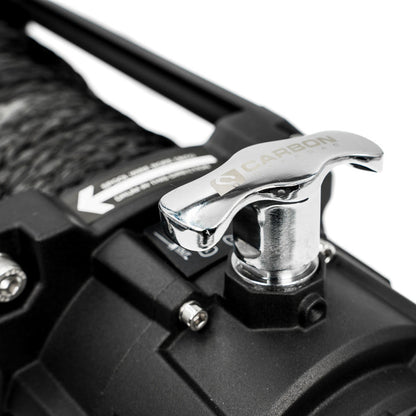

| Clutch | Rotating ring gear with manual pull-and-twist handle |
| Brake | Full-load automatic brake installed in motor housing end plate |
| Drum Diameter / Length | 63mm x 224mm |
| Mounting Bolt Pattern | 254mm x 114.3mm |
| Recommended Battery | 650 CCA minimum for winching |
| Winch Dimensions | 538 x 158 x 187mm (L x W x H) |
| Packing Dimensions | 580 x 200 x 220mm (L x W x H) |
| Winch Weight | 19.7kg with synthetic rope attached |
| Total Kit Weight | 26.65kg including rope, control box, cables, bolts and fairlead |
12V Performance
| Line Pull lbs (kg) | Line Speed ft/min (m/min) | Motor Current | Rated Line Pull Position lbs (kg) |
|---|---|---|---|
| 0 | 31.2 (9.5) | 60A | 1 / 12,000 (5,450) |
| 3,000 (1,360) | 15.4 (4.7) | 135A | 2 / 9,800 (4,450) |
| 6,000 (2,725) | 11.8 (3.6) | 220A | 3 / 8,300 (3,770) |
| 9,000 (4,090) | 8.5 (2.6) | 285A | 4 / 7,200 (3,270) |
| 12,000 (4,540) | 5.6 (1.7) | 340A | ā |
