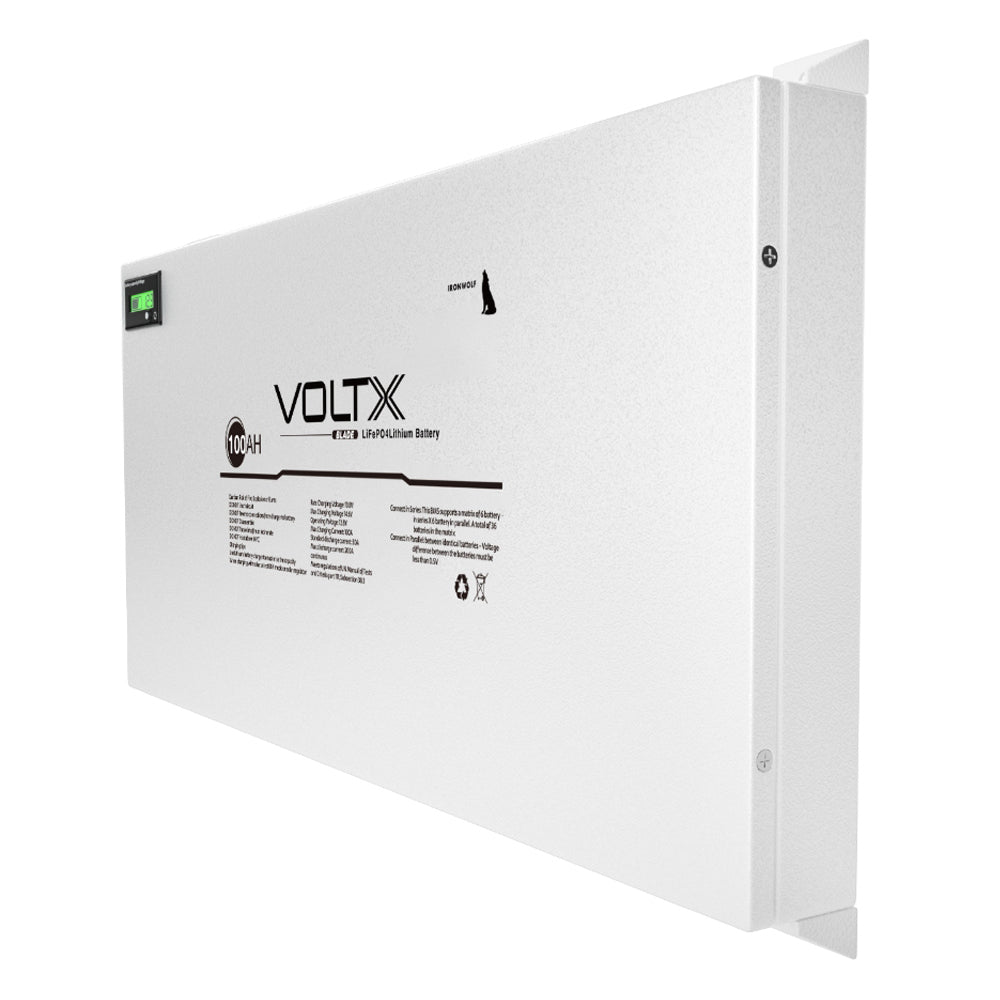

VoltX 12V 100Ah Blade Lithium Battery
Tight on space but need serious off-grid capacity? The VoltX 12V 100Ah Blade Lithium Battery packs 100Ah into a super-slim 65mm-wide profile — built for caravans, RVs and camper trailers where every millimetre matters.
Regular price
$1,159.84
Regular price
Sale price
$1,159.84
Unit price
/
per
Shipping calculated at checkout.
- Secure Checkout
- 14-Day Returns
- Fast Aussie Dispatch
Couldn't load pickup availability
Details
Details
Finding space for a full-size deep cycle battery in a van, camper or caravan can be a real headache — especially when every centimetre counts. The VoltX 12V 100Ah Blade Lithium Battery is built slim at just 65mm wide, making it practical for tight under-seat or wall-mount installations where a standard battery simply won't fit.
Inside, 36 LiFePO4 prismatic cells deliver a nominal capacity of 100Ah with a rated energy of 1.28kWh. The integrated BMS protects against overcharging, undercharging, overheating and short circuits — so you're not babysitting your power setup every trip. Fast charging is supported up to 50A max, and with approximately 4000 cycle life, this battery is built to last through years of regular use.
Need more capacity? Up to six Blade batteries can be connected in series or parallel, making it easy to scale your system as your off-grid setup grows. At 15.5kg, it's also noticeably lighter than comparable AGM batteries — a genuine win when you're watching tow weight or just tired of wrestling heavy gear into position.
Inside, 36 LiFePO4 prismatic cells deliver a nominal capacity of 100Ah with a rated energy of 1.28kWh. The integrated BMS protects against overcharging, undercharging, overheating and short circuits — so you're not babysitting your power setup every trip. Fast charging is supported up to 50A max, and with approximately 4000 cycle life, this battery is built to last through years of regular use.
Need more capacity? Up to six Blade batteries can be connected in series or parallel, making it easy to scale your system as your off-grid setup grows. At 15.5kg, it's also noticeably lighter than comparable AGM batteries — a genuine win when you're watching tow weight or just tired of wrestling heavy gear into position.
Specifications
Specifications
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Rated Energy: 1.28kWh
Charging Voltage: 14.2–14.6V
Standard Charge Current: 20A
Max Charging Current: 50A
Max Continuous Discharge Current: 200A
Max Discharge Current (5 sec): 600A
Approx. Life Cycles: 4000
Cell Grouping: 4S1P
Series Connection: Yes, max 6 batteries
Parallel Connection: Yes, max 6 batteries
Dimensions: 600(L) x 65(W) x 270(H) mm
Weight: 15.5 kg
Warranty: 1 year Australian warranty
Nominal Capacity: 100Ah
Rated Energy: 1.28kWh
Charging Voltage: 14.2–14.6V
Standard Charge Current: 20A
Max Charging Current: 50A
Max Continuous Discharge Current: 200A
Max Discharge Current (5 sec): 600A
Approx. Life Cycles: 4000
Cell Grouping: 4S1P
Series Connection: Yes, max 6 batteries
Parallel Connection: Yes, max 6 batteries
Dimensions: 600(L) x 65(W) x 270(H) mm
Weight: 15.5 kg
Warranty: 1 year Australian warranty
What’s Included
What’s Included
1 x VoltX 12V 100Ah Blade Lithium Battery
1 x User Manual
1 x User Manual
★★★★★
