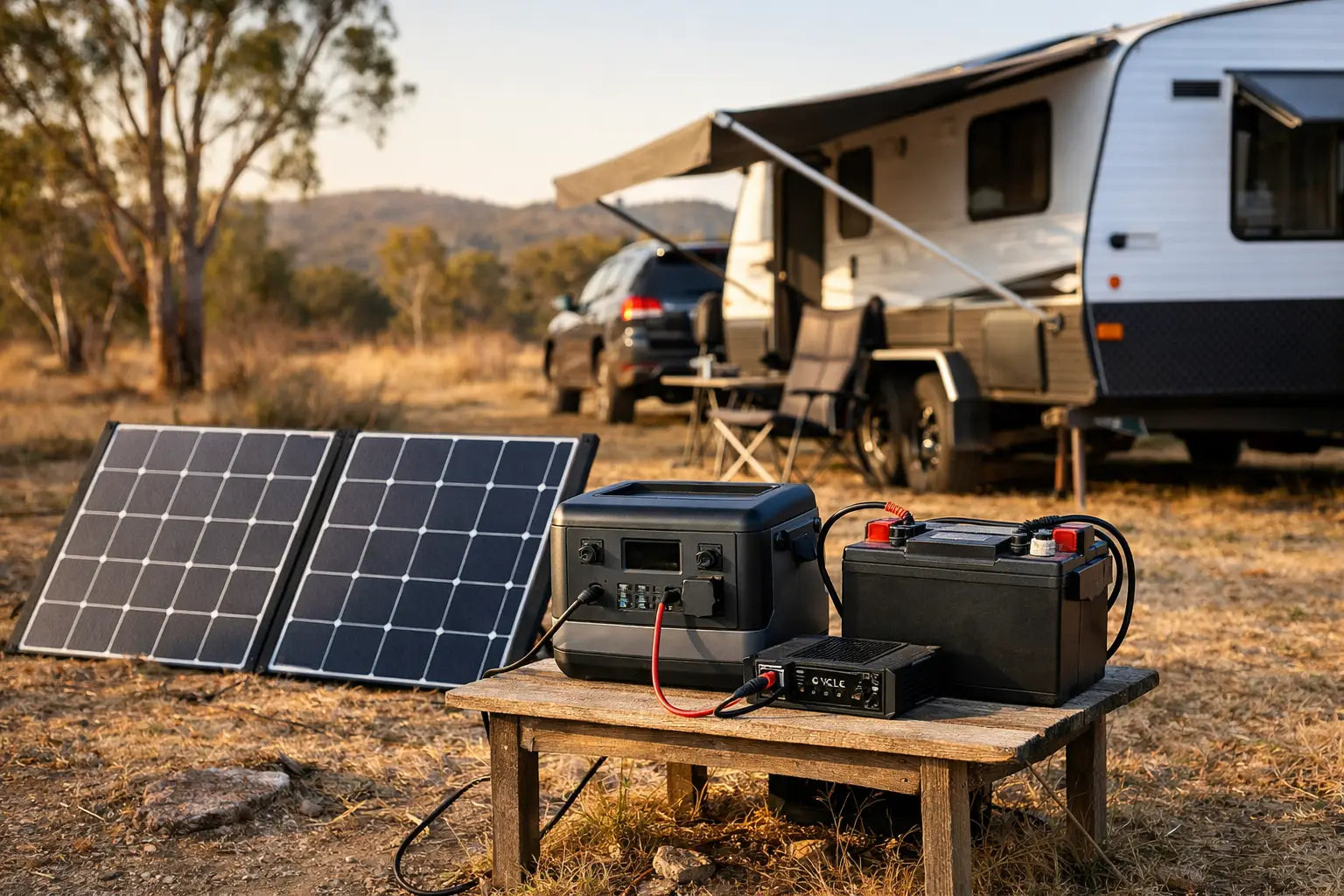

Budget Caravan Power Setup for Australian Trips
Share
A flat battery at a free camp can turn a good weekend into a drive to the nearest powered site. A budget caravan power setup should run the essentials reliably without pretending a small system can replace household mains power.
The right setup depends on the appliances you use, how long you stay, how often you tow and the weather you camp through. The example below is a planning guide for modest 12V touring, not a universal prescription or installation instruction.
Start with what you need to run
List every appliance and estimate how much energy it uses in a normal day. A 12V compressor fridge is often the largest regular load, followed by fans, pumps, device charging, lighting and entertainment. A CPAP machine, larger fridge or work-from-road setup can change the calculation significantly.
For a couple or small family using a modest fridge, LED lighting, water pump, phones and a 12V fan, daily consumption may fall somewhere around 40 to 70 amp-hours. Treat that only as a rough example. Measure or calculate your own loads using appliance specifications and realistic run times.
A system that barely covers the average day has little margin for hot weather, shade, cloudy conditions or an unexpectedly long stay.
A practical modest caravan power example
A small to medium caravan that mixes powered sites with short off-grid stays might start with:
- one 100Ah lithium LiFePO4 battery with a suitable battery-management system
- around 160W to 200W of fixed solar as an initial planning range
- an MPPT solar regulator correctly matched to the panel and battery
- a 20A to 25A DC-DC charger for charging while towing
- a shunt-based battery monitor
- correctly sized cable, fuses or circuit breakers, isolation and secure mounting
- an optional small pure sine-wave inverter for low-draw chargers only
This example is intended for refrigeration, lighting, pumps and small electronics. It is not designed to run kettles, toasters, microwaves, electric heaters or air conditioners.
A 100Ah lithium battery may provide substantially more usable energy than a similarly rated AGM battery, but the safe usable capacity depends on the battery manufacturer, battery-management settings, temperature limits and desired service life. Follow the battery specifications rather than assuming every lithium battery can be discharged to the same point.
An AGM battery can still suit occasional touring where weight and slower charging are acceptable. Regular deep discharge shortens AGM life, so capacity should be planned with a larger reserve.
How much solar is enough?
Around 160W to 200W can be a practical starting point for modest use, but there is no universal sweet spot. Solar production varies with season, shade, cloud, heat, panel angle, dirt and regulator efficiency.
Roof-mounted panels charge while the caravan is parked or travelling, but they cannot be moved out of shade. A portable panel can be a useful later addition for campers who prefer shaded sites, provided it is compatible with the regulator and battery system.
Compare expected daily solar production with measured daily consumption. A panel’s wattage is a peak laboratory rating, not a promise of that output throughout the day.
Why DC-DC charging matters
A DC-DC charger can provide controlled charging from the tow vehicle, particularly with lithium batteries and vehicles using smart alternators. It also gives the system another recovery option after cloudy weather.
A 20A to 25A unit is a common planning range for a modest setup, but charger size, alternator capacity, cable length, connector choice and battery requirements all need to be considered together.
Dedicated high-current connectors such as Anderson-style connections are commonly used for caravan charging circuits. Cable size and circuit protection are critical because long runs can create voltage drop and heat.
Spend money on safety and reliability
Battery and solar advertising receives most of the attention, but cable, protection and installation quality determine whether the system works safely.
Every positive cable leaving the battery should have suitable protection close to the battery. Cables need to be sized for both current and length, secured against vibration and protected where they pass through metal or near heat and moving parts. Batteries must be mounted securely and installed within their approved environmental and ventilation requirements.
A shunt-based monitor is useful because voltage alone can be misleading, particularly with lithium batteries. It helps track charge, discharge and remaining capacity, although the monitor also needs to be configured correctly.
Major 12V caravan or tow-vehicle work should be designed or checked by a suitably qualified automotive electrical professional. Fixed 240V electrical work in Australian caravans must be completed by an appropriately licensed electrical worker. Do not treat internet diagrams or a general article as installation instructions.
Where this setup reaches its limits
A small inverter may charge laptops, camera batteries or low-draw tool batteries. High-wattage heating and cooking appliances can drain a 100Ah battery rapidly once inverter losses are included.
Gas cooking, a stove-top kettle and suitable cold-weather bedding are generally more practical for a modest off-grid setup than trying to run household heating elements.
You may need significantly more battery, solar and charging capacity if you run a large fridge, use medical equipment, work from the road, travel with a family or remain off-grid for extended periods. That is not automatically excessive; it is a different load profile.
Make a modest system work harder
Keep solar panels clear of shade where practical, maintain fridge ventilation and charge devices while driving when charging capacity is available. Use LED lighting and review the battery monitor each day rather than waiting for a low-voltage cut-out.
Build in stages if the budget is tight. Start with a quality battery, suitable charging, monitoring and safe wiring. Add solar or capacity after collecting real trip data. Buying around measured use usually produces better value than building around appliances you may never run.
A good budget system is not the cheapest collection of parts. It is a properly planned setup that safely runs the essentials, has enough margin for ordinary changes in conditions and can be expanded when your travel style genuinely requires it.
